EMT-VH3V
High Pressure Ball Valves

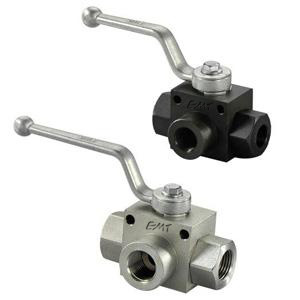

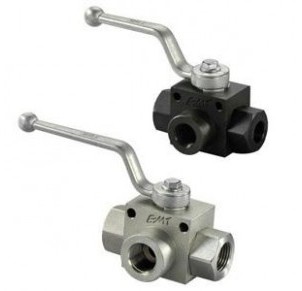

TWO-POSITION THREE-WAY HIGH PRESSURE BALL VALVE WITH INSTALLATION PIN HOLE
Valve body and Ball body available in Carbon Steel, Stainless Steel and Brass.
Various material available for handle.
Working pressure: 315 Bar to 500 Bar
PLEASE REFER TO EBOOK LINK ABOVE FOR MORE SIZES AND SPECIFICATIONS.
TWO-POSITION THREE-WAY HIGH PRESSURE BALL VALVE WITH INSTALLATION PIN HOLE
Part Number:
EMT-VH3V-M*x* (Metric)
EMT-VH3V-G* (BSPP)
EMT-VH3V-NPT* (NPT)
EMT-VH3V-*LR (Metric Light Duty DIN 2353)
EMT-VH3V-*SR (Metric Heavy Duty DIN 2353)
For example:
EMT-VH3V-M16x1.5 (Metric M16x1.5)
EMT-VH3V-G1/4 (BSPP 1/4")
EMT-VH3V-NPT1/4 (NPT 1/4")
EMT-VH3V-08LR (Metric M14x1.5 Light Duty DIN 2353)
EMT-VH3V-10SR (Metric M18x1.5 Heavy Duty DIN 2353)
