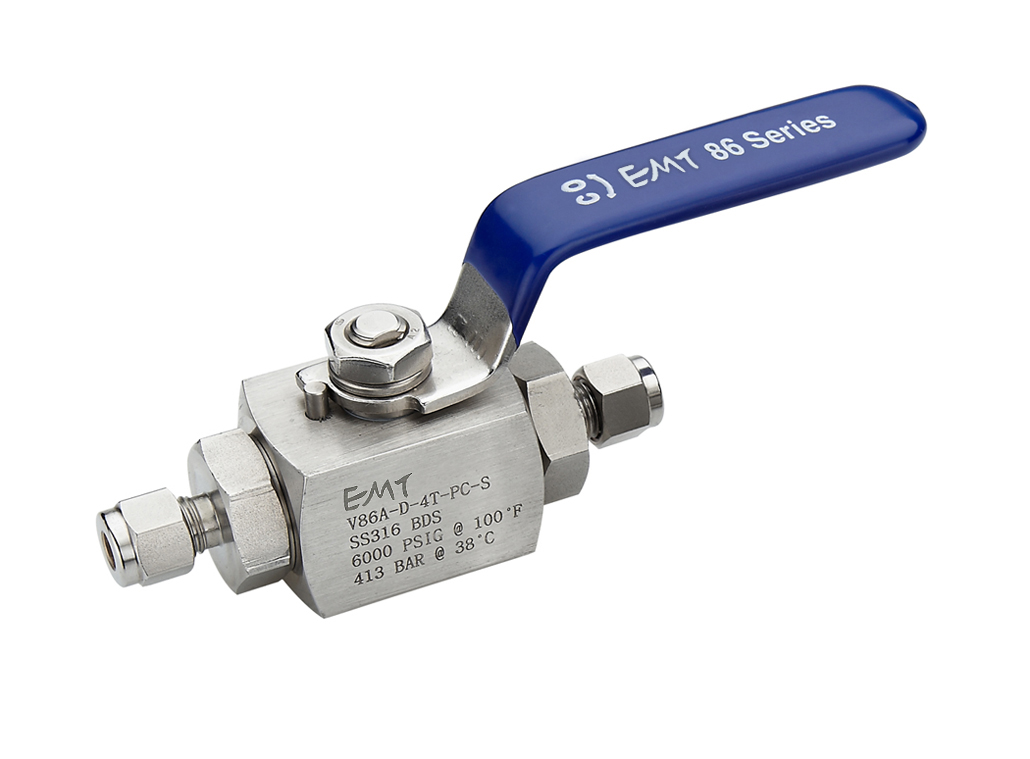

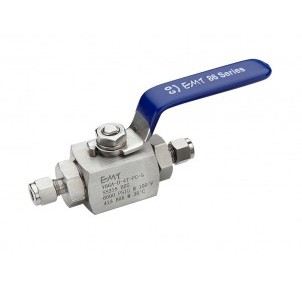

Instrumentation Ball Valves
On-off switching, and crossover flow path
Working pressures up to 1000-3000 psig
Temperatures from -53°c to 148°c
Environmental and heated-process applications
1/8 to 3/4 in. and 3 to 12mm end connections
REFER TO EBOOK LINK ABOVE FOR MORE SIZES AND SPECIFICATIONS
Angle-Pattern Valves: to order an angle-pattern valve, add "A" to ordering number of a valve with the dimension listed.
Example: "EMT-YBQF-2A" (Notes: angle-patterned valve have the same options and accessories as straight-pattern valves)
Every ball valve is vigorously tested with nitrogen gas at 1000psig (69 bar). Should 1000psig (69 bar) exceeds the maximum pressure rating of the ball valve, its maximum pressure rating is used. The maximum allowable leak rate of seat tests is set to be 0.1 std cm3/min.
